Bonanza B36TC


Bonanza B36TC Avionics Renewal
November 23, 2018
Performance and new avionics…
Out with the old, and out with the woodgrain.

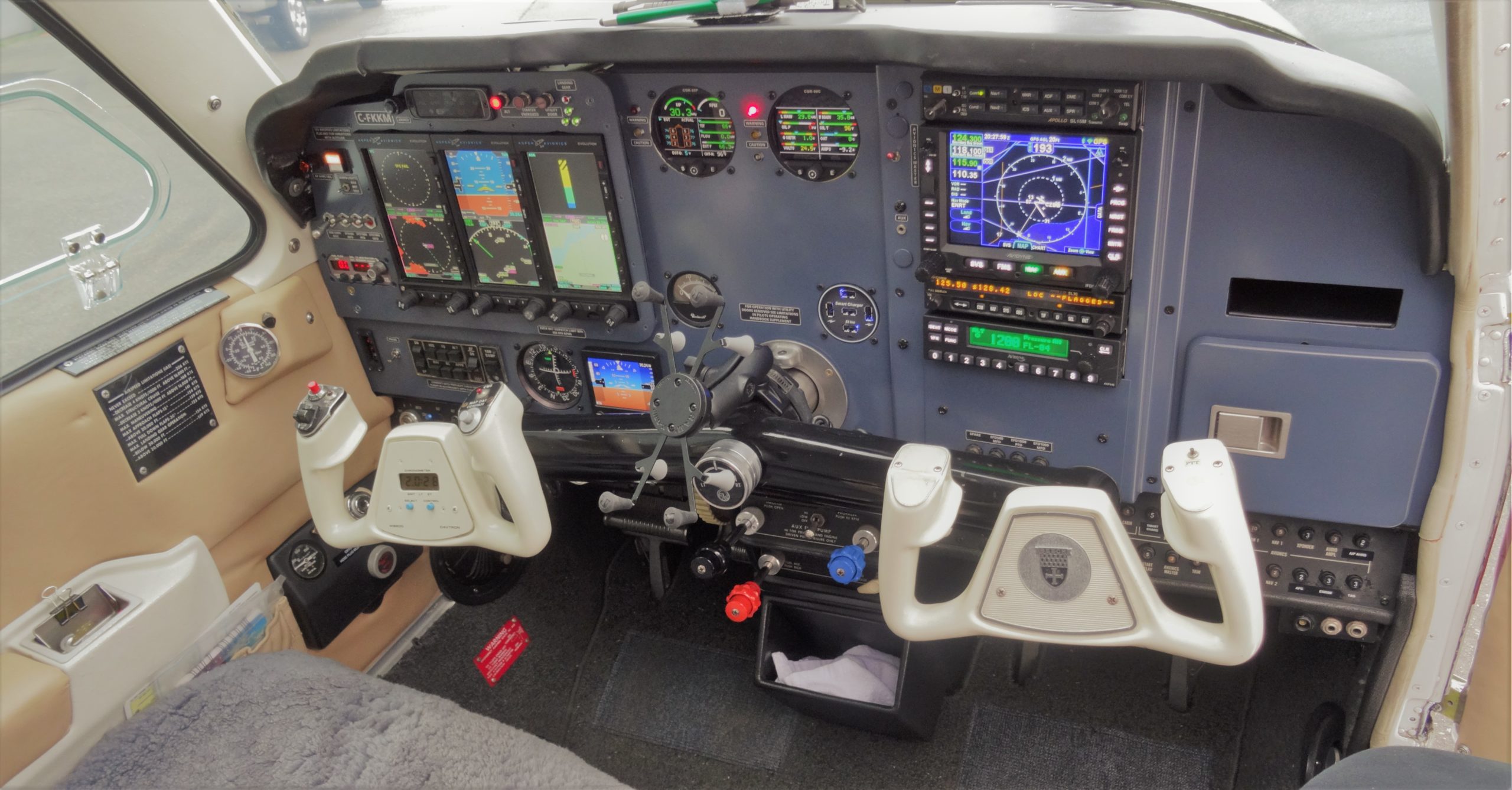

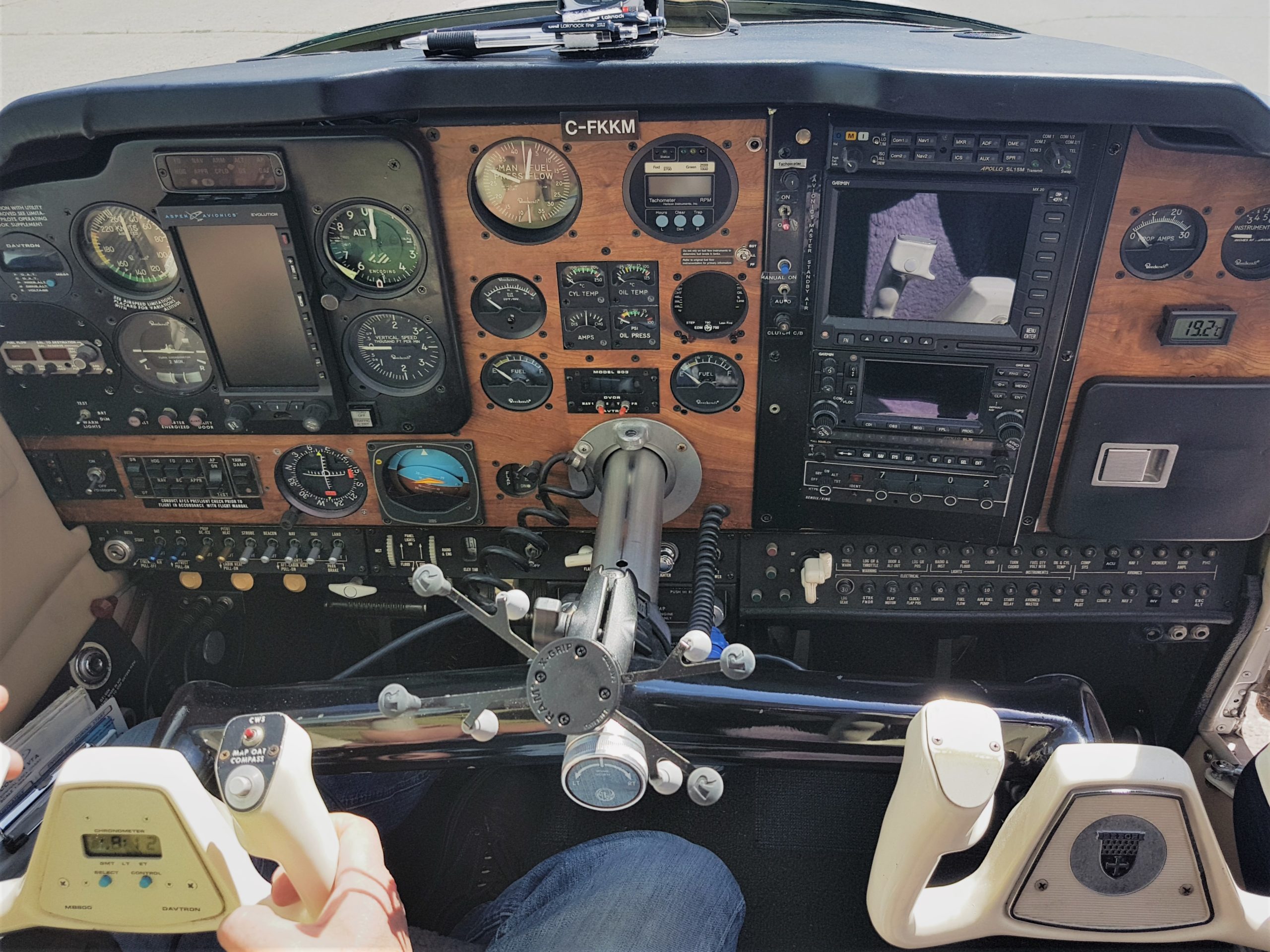

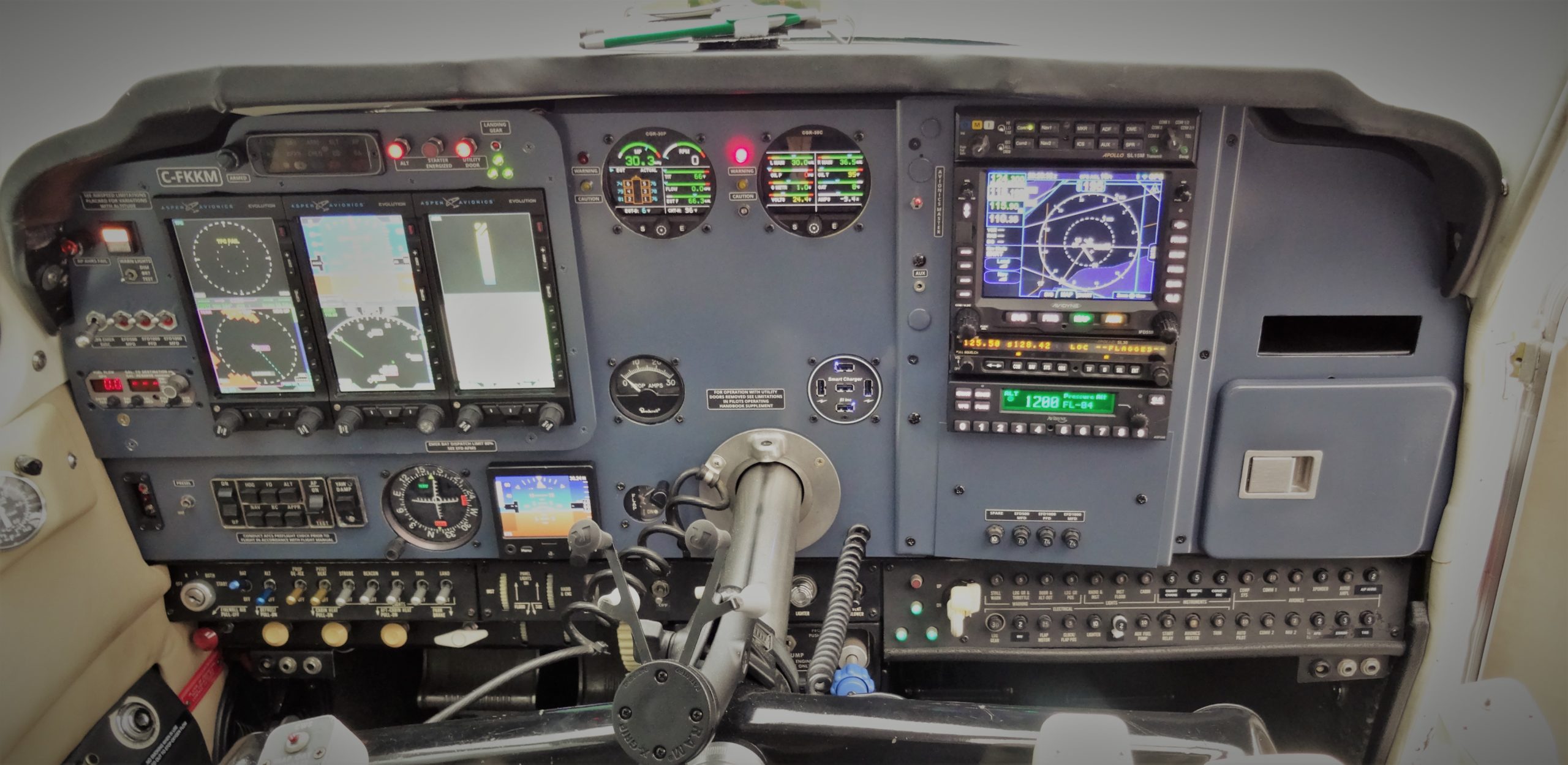

This Bonanza had a single EFD 1000 and steam gauges, an older Garmin MFD, GNS 430 and an antique KT76A. Now it has 3 Aspen displays, an ESI-500 Electronic Standby, Avidyne IFD550, APX340, and Electronics International CGR30P / CGR30C primary engine instruments. The wood grain was removed, new CNC Designed, CAM processed and painted with custom mixed JetFlex acrylic. All placards were replaced with a new set of custom designed, uniform color, uniform font, placard set.


Project Details
Beechcraft Avionics Upgrade Equipment
EFD1000 Electronic Display | |
MFD500 Electronic Display | |
ESI-500 Electronic Standby | L3 Communications |
IFD550 | Avidyne |
AXP340 | Avidyne |
CGR-30P Primary Engine Instrument | Electronics International |
CGR-30C Engine Instrument | Electronics International |
