Cessna 177B New Instrument Panel

Cessna 177B Cardinal

July 2019

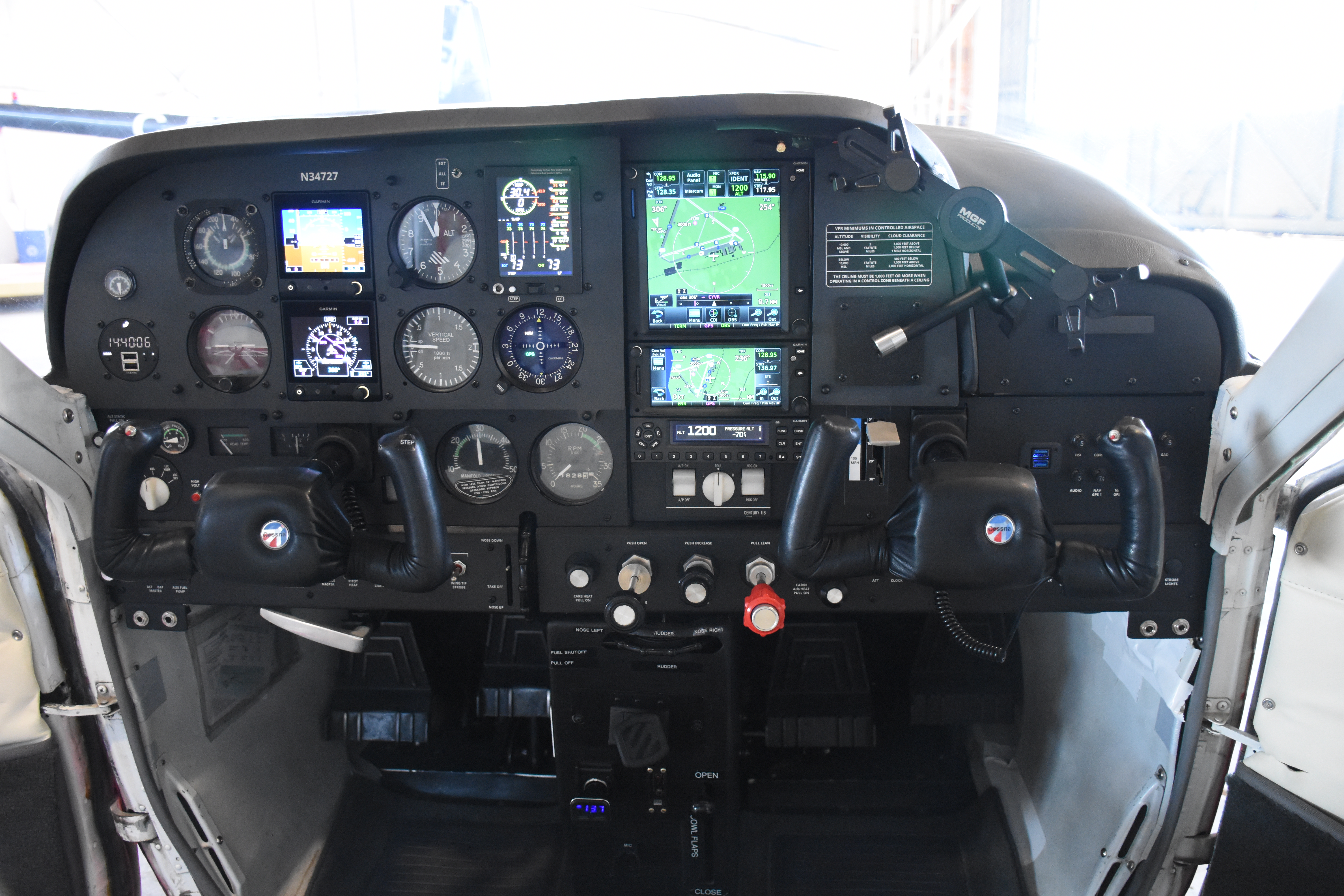

Cessna 177B. Out with the obsolete Narco equipment. In with new Garmin equipment. The G5’s are flush-mounted. All-new instrument panels including both lower panels and a new glovebox door. All of the panels are Powder-Coated and laser engraved. The existing wing leveler controller was remounted into a standard 6 1/4″ rack to allow for an easy upgrade to the GFC 500 when the certification is complete.

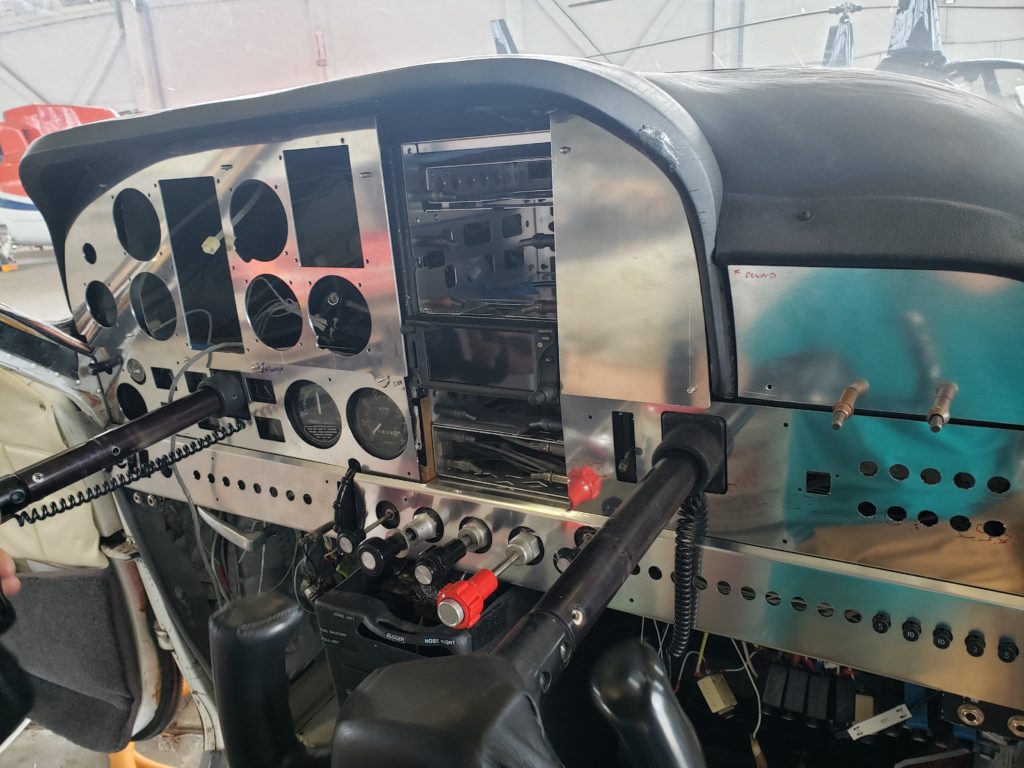

Freshly CNC’d instrument panels and overlays

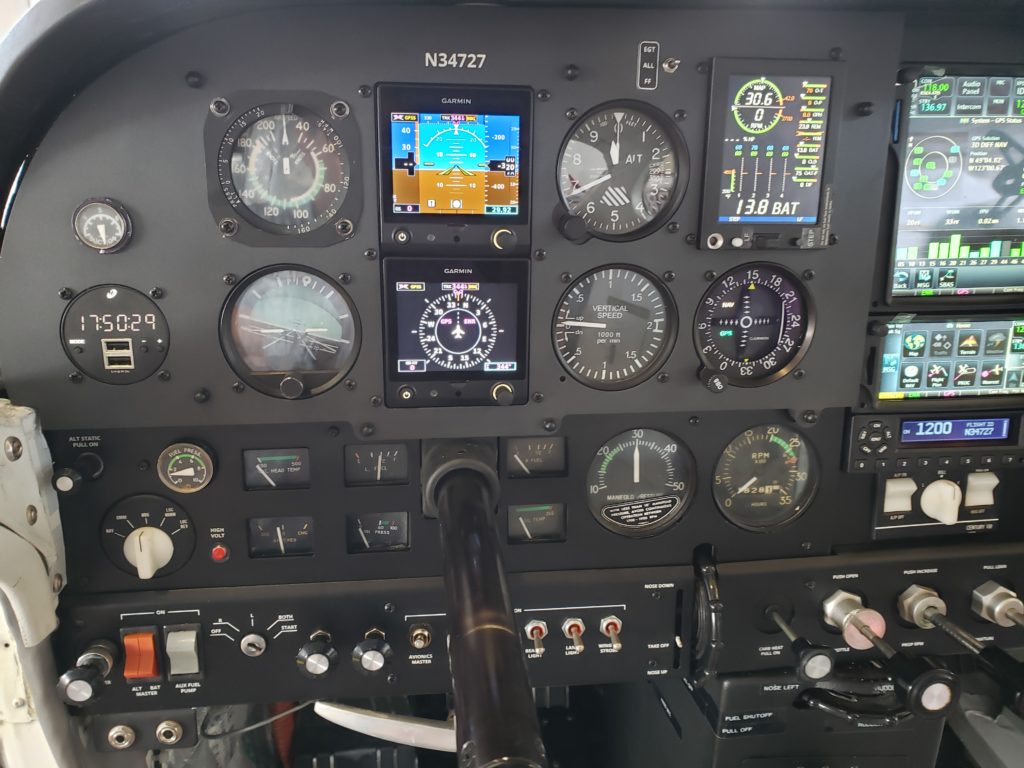

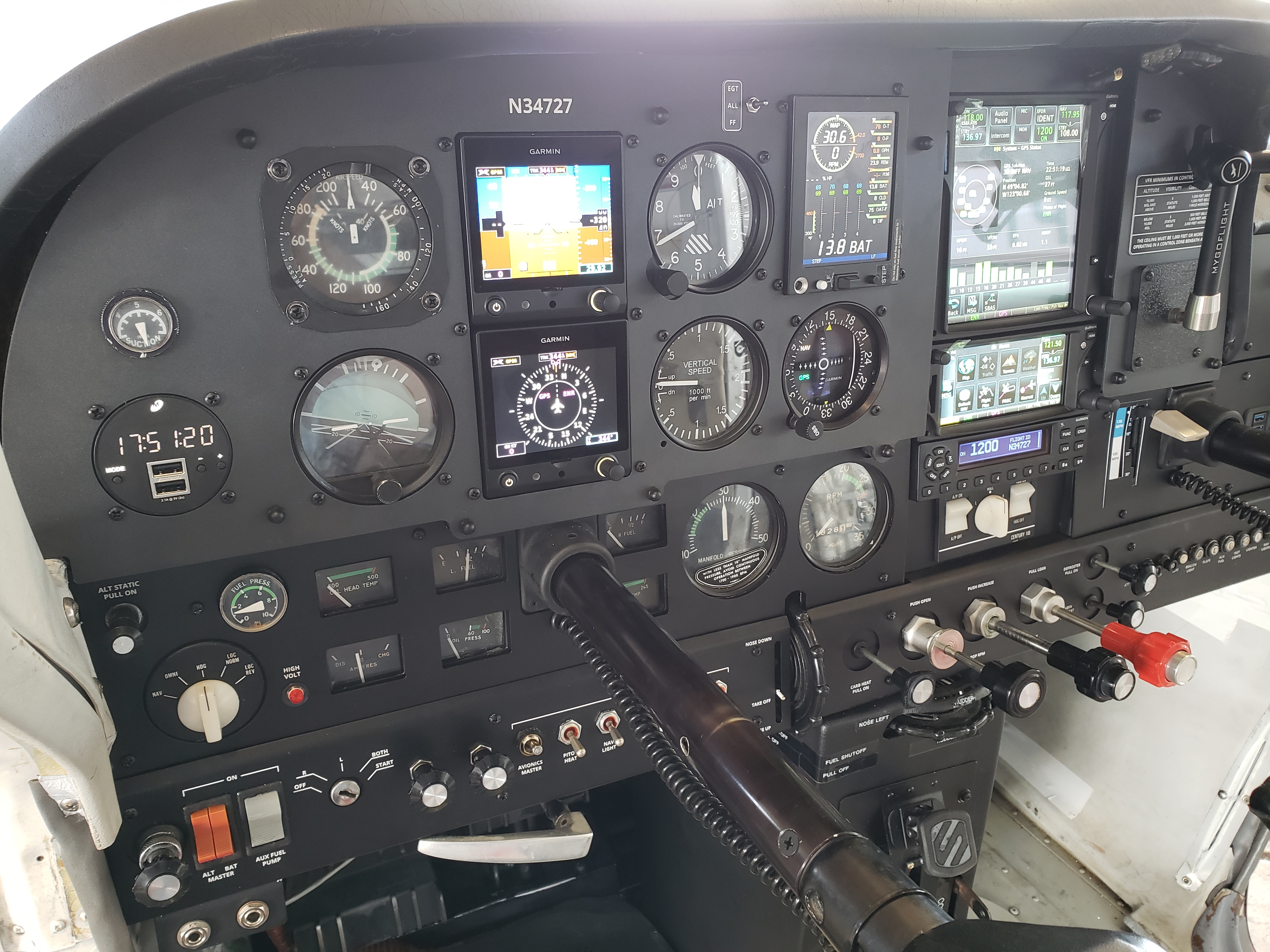

Flush Mounted G5’s. Laser engraved

Project Details

Aircraft Manufacturer
Aircraft Model
Aircraft Type

Cessna Avionics Upgrade Equipment

G5 Attitude Indicator Garmin
G5 HSI Garmin
GTN 750 Com/Nav/GPS/MFD Garmin
GMA 35c Audio Controller Garmin
GTN 650 Com/Nav/GPS Garmin
GI 106B NAV/ILS/GPS Indicator Garmin
GTX 345 WAAS Transponder Garmin
GAE 12 Altitude Encoder Garmin
MD 93 Clock/USB ports Mid Continent Instruments
TA202 USB Ports Mid Continent Instruments
