Cessna 560 Encore – Dual GTN 750’s
Cessna 560 Encore GTN750 update
October 17, 2019

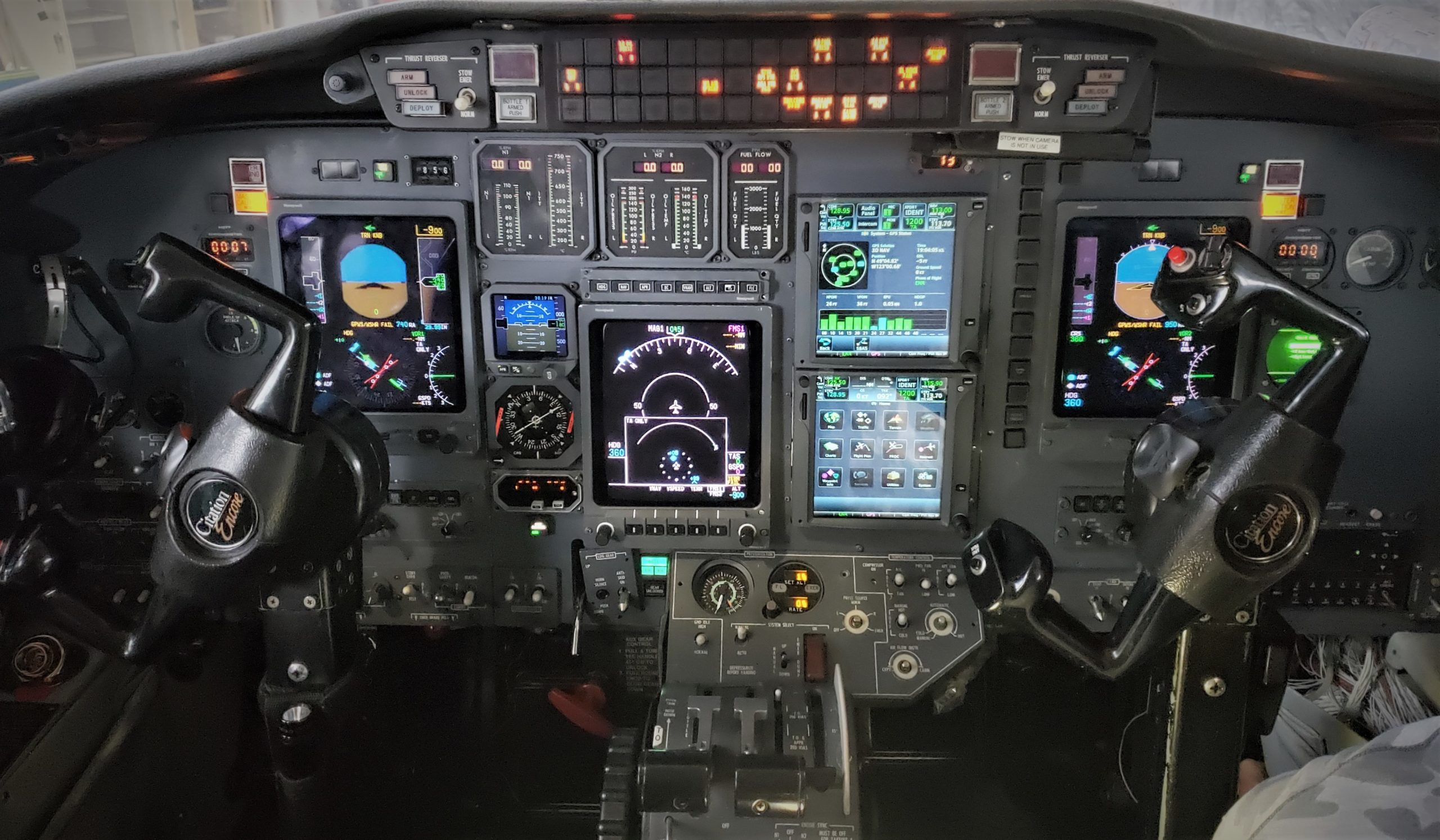

The cost to upgrade the original Primus Avionics to be ADS-B compliant made modernizing the avionics with dual Garmin GTN 750’s cost-effective.
The Garmin equipment will display on the Primus EFIS, an Avionik Straubing LPV converter provides LPV approach capability on the older Primus EFIS system. The audio system including interface to the rear passengers was taken care of by a Garmin GMA 35c. The flexibility of this audio system also provided an easier interface to the Satcom. Dual GTX 3000’s provides the Enhanced Mode S for ADS-B OUT, and are compatible with the TCAS II system. A Collins Aerospace ADF 462 and DME 442 were added to keep ADF and DME centric approaches available to this operator.
Project Details
Cessna Avionics Upgrade Equipment
| GTN 750 Com/Nav/GPS | Garmin |
| GTN 750 Com/Nav/GPS | Garmin |
| GMA 35c Integrated Audio | Garmin |
| GTX 3000 Transponders | Garmin |
| Avionik Straubing LPV Converter | |
| ADF 462 ADF Receiver | Collins Aerospace |
| DME 442 DME Transceiver | Collins Aerospace |
